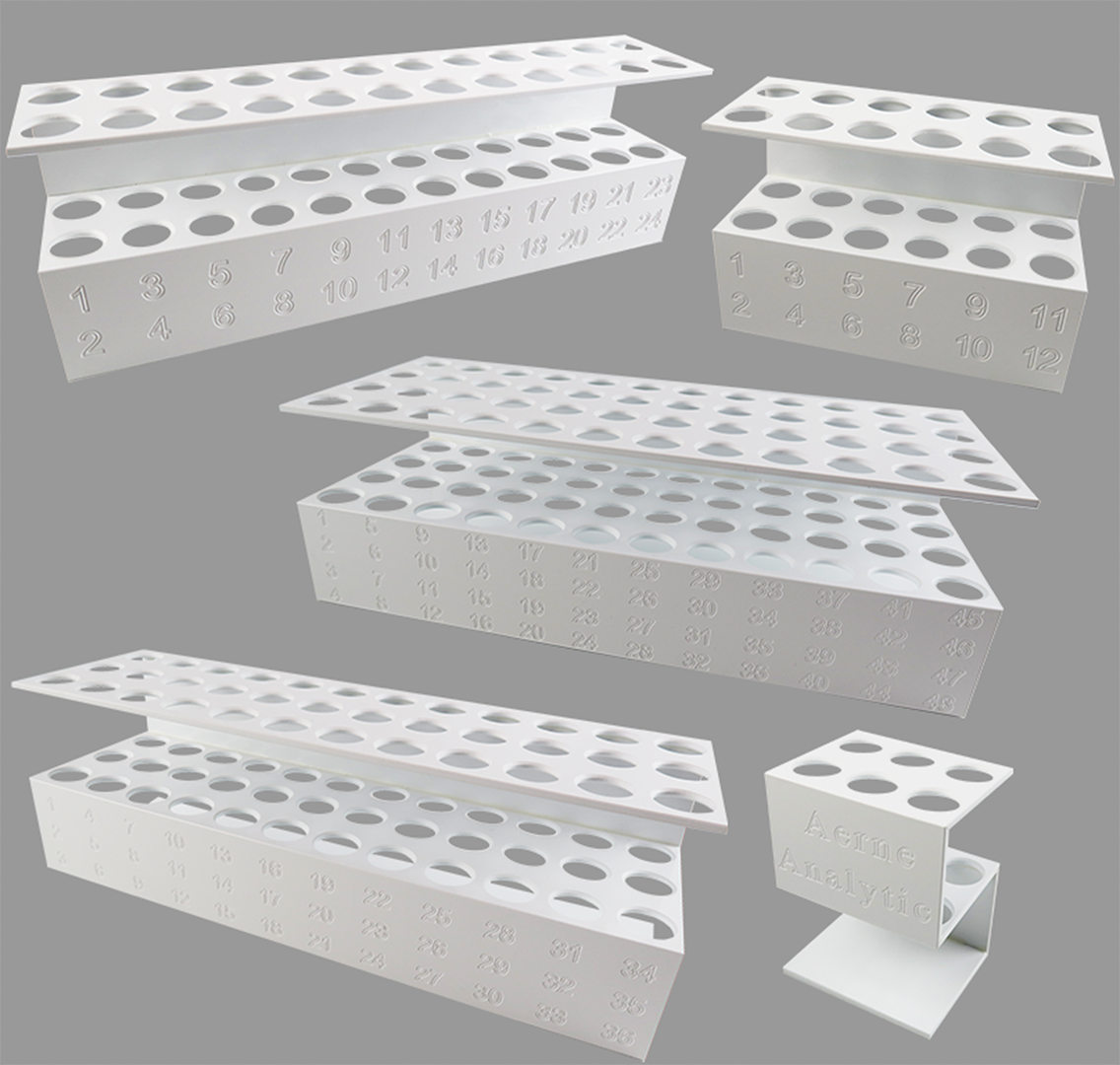

SmartLab Racks with Numbering
The Aerne Analytic SmartLab Series includes test tube racks for 6, 12, 24, 36 and 48 samples for a diameter of each 18mm. Compared to conventional test tube racks the sample spaces of the SmartLab Series is graved with numberings to facilitate the daily work in laboratories. There is no more lettering of the single samples necessary. The racks are made of PVC and therefore are perfect for the use in laboratories because of their stability and possibility to clean it sterile.
Order details:
Part Order-No.
for 12 (2×6) glasses SLS 6
for 12 (2×12) glasses SLS 12
for 24 (3×12) glasses SLS 24
for 36 (4×12) glasses SLS 36
for 48 (4×12) glasses SLS 48



Racks for butyrometers
Polypropylene (PP) white, acid and alkaline-proof, heat-resistant up to 100°C, Drillings 26 mm diameter
Order details:
Part Order-No.
for 12 (2×6) glasses; Dimensions (mm): L=160 x W=60 x H= 87 RGG 12
for 24 (2×12) glasses; Dimensions (mm): L=315 x W=60 x H= 87 RGG 24
for 36 (3×12) glasses; Dimensions (mm): L=315 x W=90 x H= 87 RGG 36
for 48 (4×12) glasses; Dimensions (mm): L=315 x W=120 x H= 87 RGG 48



Racks for butyrometers
Polypropylene (PP) white, acid and alkaline-proof, heat-resistant up to 100°C, Drillings 26 mm diameter		 no-image
Order details:
Part Order-No.
for 12 (2×6) Butyrometer; Dimensions (mm): L=225 x W=80 x H= 155 BMG 12
for 24 (2×12) Butyrometer; Dimensions (mm): L=450 x W=60 x H= 155 BMG 24
for 36 (3×18) Butyrometer; Dimensions (mm): L=630 x W=90 x H= 155 BMG 36



Rack for centrifuge tubes (ZG)
Polypropylene (PP) white, acid and alkaline-proof, heat-resistant up to 100°C		 zentrifugenglaeser
Order details:
Part Order-No.
Number centrifuge tubes: 24(2×12) ;Drilling: 18 mm; L:315xW:60xH:65 ZGG 2/12/18
Number centrifuge tubes: 12(2×6); Drilling: 26 mm; L:220xW:80xH:65 ZGG 2/6/26
Number centrifuge tubes: 6 (1×6) ;Drilling: 36 mm; L:315xW:60xH:65 ZGG 1/6/36
Number centrifuge tubes: 6 (1×6) ;Drilling: 42 mm; L:315xW:60xH:65 ZGG 1/6/42



Imhoff cone Racks
PVC white, rack rods 500mm long, height-adjustable, Drillings 98 mm diameter
Order details:
Part Order-No.
Number of cones: 2; Size of Base plate: 310x150mm (Höhe 500mm) SIG 2
Number of cones: 4; Size of Base plate:650x150mm (Höhe 500mm) SIG 4
Number of cones: 6; Size of Base plate: 900x150mm (Höhe 500mm) SIG 6

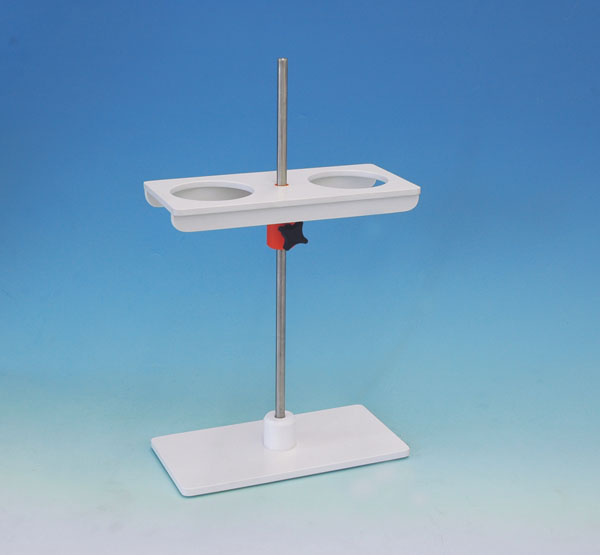

Racks for Funnels
PVC white, rack rods 500mm long, height-adjustable, Drillings 60 mm diameter
Order details:
Part Order-No.
Number of Funnels:2; Size of Base plate: 230x100mm (Höhe 500mm) TGS 2
Number Trichter:4; Size of Base plate:500x100mm (Höhe 500mm) TGS 4
Number Trichter:6; Size of Base plate:770x100mm (Höhe 500mm) TGS 6
Number Trichter:10; Size of Base plate:1040x100mm (Höhe 500mm) TGS 10



Rack for Araeometers
PVC white, with drip tray, for convenient storage of Araeometers up to 30 mm diameter		 gestell araeometer
Order details:
Part Order-No.
Rack width 140mm (Höhe 200mm) for 4 Araeometers AMG 4
Rack width 206mm (Höhe 200mm) for 6 Araeometers AMG 6



Racks for weighing pipettes
PVC white, for bent weighing pipettes		 gestell waegepipetten
Order details:
Part Order-No.
Rack for 2 Wägepipetten; Dimensions 65x35mm (Höhe 35mm) WPG 2
Rack for 4 Wägepipetten; Dimensions 65×55 mm (Höhe 35mm) WPG 4



Pipette Carousel
pipettenkarusell
Order details:
Part Order-No.
Pipette Carousel PPK
